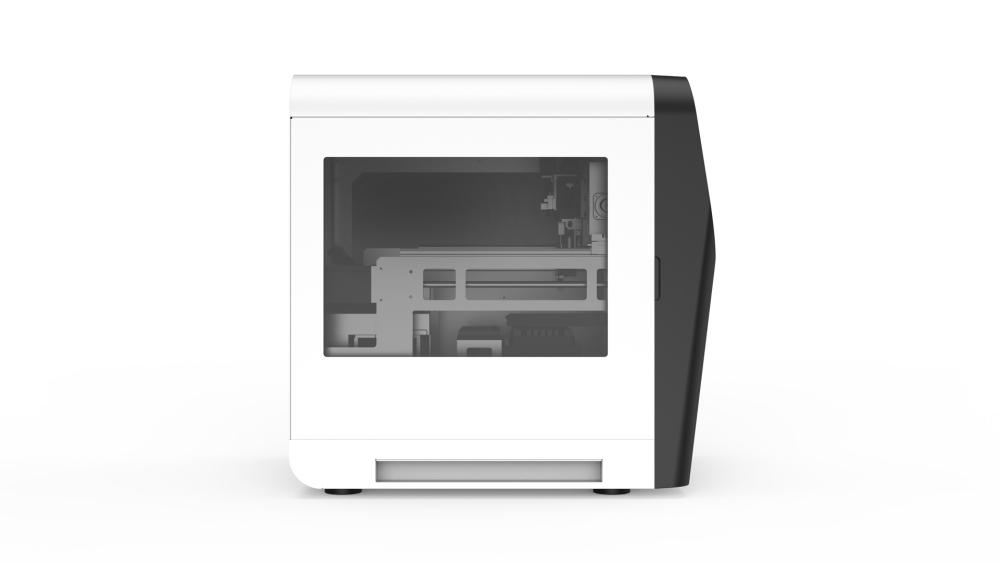

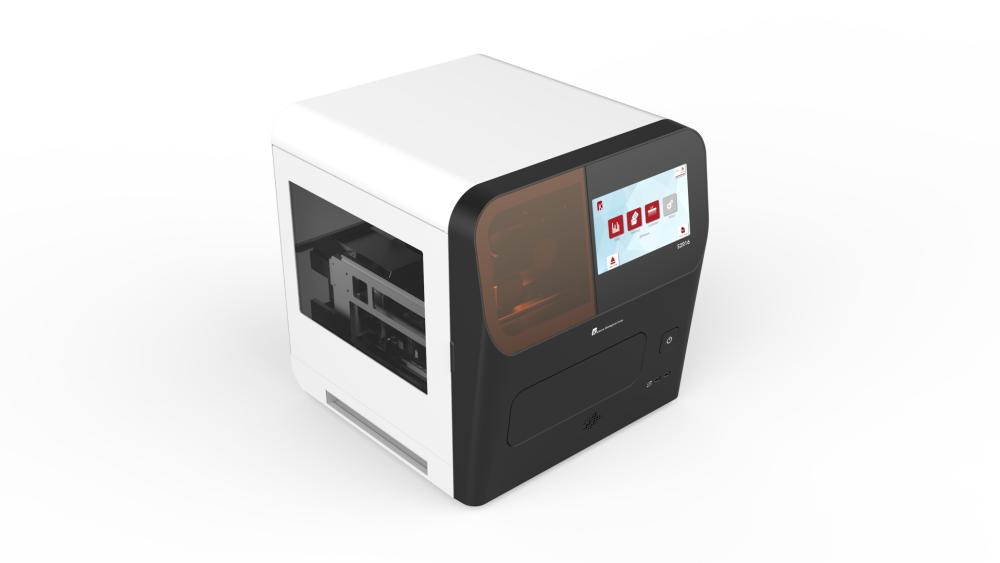

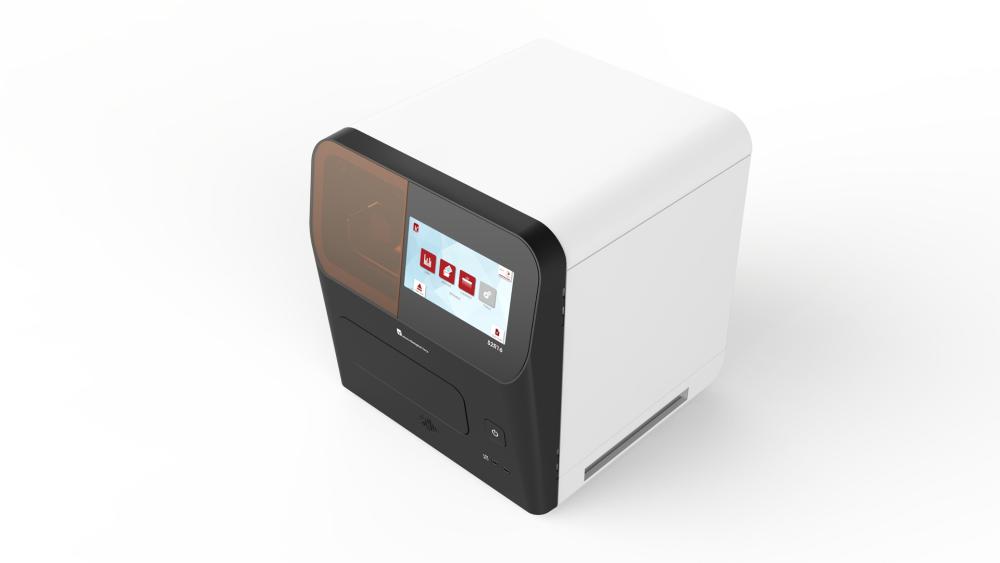

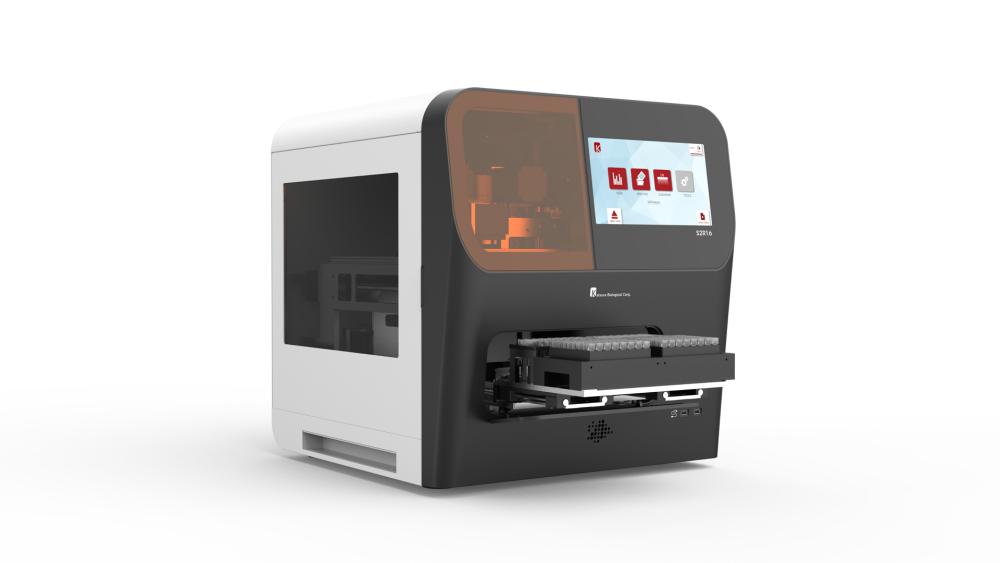

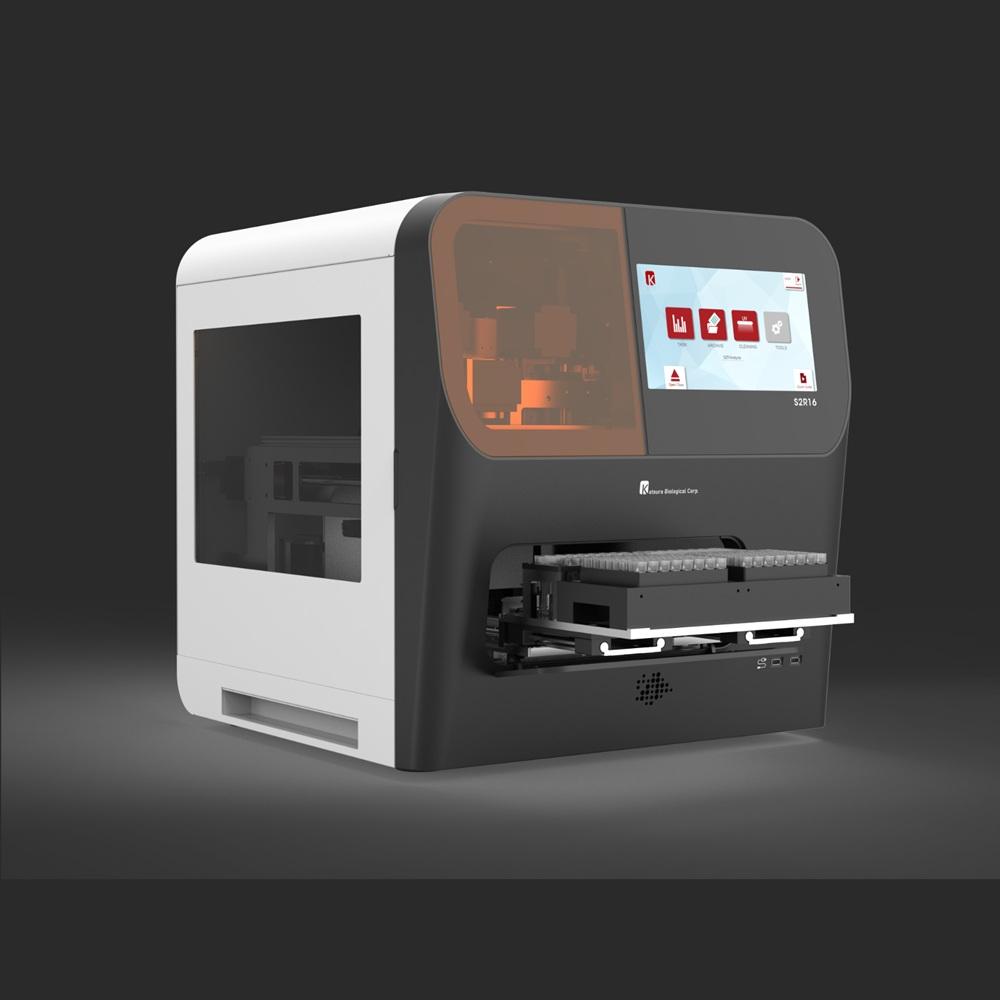

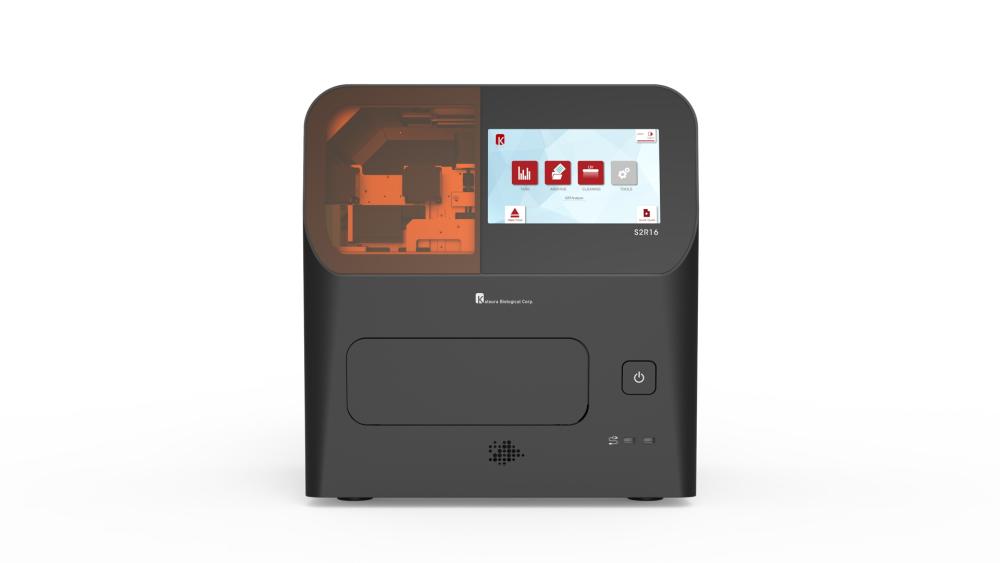

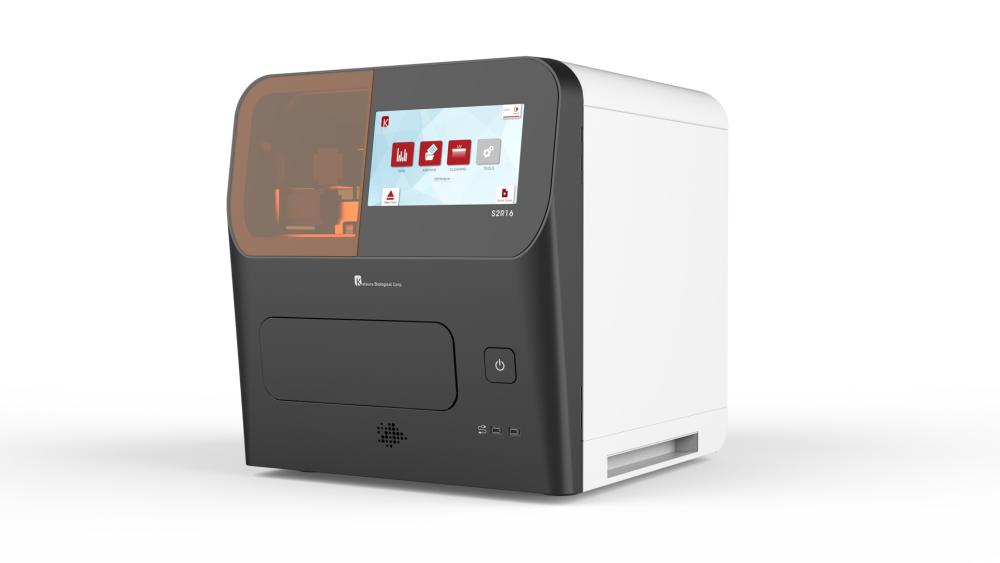

Name: S2R16 Fully Integrated Diagnostics Platform
Brand: S2R16 Fully Integrated Diagnostics Platform
SKU: 000020
Availability: InStock

Full automation

Less than 2 hours from sample to result

True walk–away platform

Pre–filled proprietary extraction plates

For ready–to–use lyophilized PCR master mix

Intuitive and easy–to–operate user interface

Different data transfer options（LIS）available

Small footprint

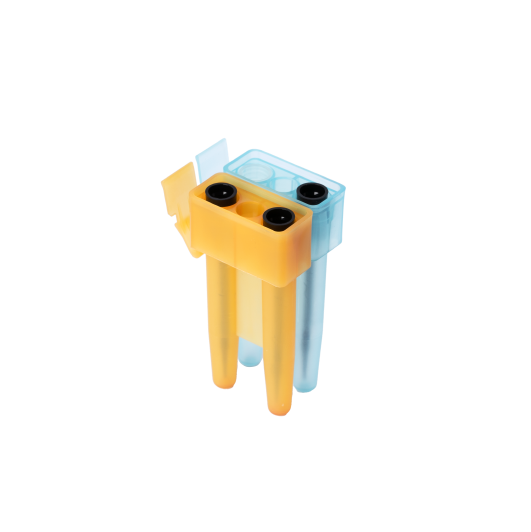

PCR set–up cartridges

Provides reagents and plastic consumables needed for sample processing.

Holds the lyophilized PCR master–mix.（to be provided by assay manufacturer）

PCR reaction tube＆cap, and tip for liquid transfer readily available for automated processing.

Waste reduction due to thought–through and efficient concept.

Pre-filled extraction plates

For processing up to 8 samples/run.

Provides all necessary for contrmination–free extraction.

Residual eluate can be stored for additional downstream applications.

Contains the magentic rod cover and store it after use, for safe waste disposal.

Liquid handling

For rapid sample and eluate transfer.

Performs preparation of PCR reaction mix

Unique design enables capping and transfer of PCR reaction tubes to PCR module.

qPCR unit

5–channel qPCR for up to 16 samples/run.

Provides fast cycling capability for results in less than 40 minutes.（dependent on assay used）

Extraction unit

Two 8–magnetic–rod arms for processing magnetic bead based extraction.

Fast and contamination–free nucleic acid extraction in 10–40 minutes.（dependent on protocol）

Simplify your lab workflow

The Katsura S2R16 consolidates extraction, amplification and detection in one easy–to–yse ubtegrated ubstrynebt, providing fast and reliable results with high flexibility.

A wide range of design options for individualized requirements are abailable on request.

Specifications

Extraction module

Sample capacity	1–16 samples／run
Sample input volume	50–300 µL
Elution volume	80–200 µL
Extraction time	10–40 minutes／run（dependent on protocol used）
Magnetic beads recovery rate	≧98％
UV decontamination	Built–in

Liquid handling module

Pipetting volume	10–200 µL
Pipetting accuracy	5 µL＜10％ 50 µL＜5％

qPCR module

Sample input volume	10–50 µL
Reaction temperature	40–99℃
Light source	High–Brightness LED, 5–channels
Excitation wavelength	470nm–680 nm（±10 nm）〔FAM, HEX／VIC, ROX, CY5, CY5.5〕
Detection wavelength	520 nm–710 nm（±10 nm）〔FAM, HEX／VIC, ROX, CY5, CY5.5〕

Platform dimensions

Dimensions（W x D x H）	610 x 670 x 660 mm
Weight	76 kg

Choose from a wide range of extraction consumables for optimal DNA and RNA extraction results from your specific sample types.

Alternative instrument design options available, customized for your specific needs

The integrated platform can be adapted to different PCR assay formats, from dried down/lyophilized PCR master mix to classical PCR set-up utilizing individual components.

The extraction unit can be made compatible to common 96-well deep well plates as well as other customized formats. PCR modules with 3–6 detection channels are available, for maximum flexibility in building your optimal platform
